A steam trap is a device used to discharge condensate and non condensable gases. As a proud & leading manufacture and supplier for the Steam Traps, Vatac offers these product Line mainly in the types of free floating ball, inverted bucket & thermo-dymatics. A steam trap is a device used to discharge condensate and non condensable gases while not permitting the escape of live steam. Nearly all steam traps are nothing more than automatic valves. They open, close or modulate automatically.
Steam traps can be split into three major types:
1. Mechanical traps. They have a float that rises and falls in relation to condensate level and this usually has a mechanical linkage attached that opens and closes the valve. Mechanical traps operate in direct relationship to condensate levels present in the body of the steam trap. Inverted bucket and float traps are examples of mechanical traps.
2. Temperature traps. They have a valve that is driven on / off the seat by either expansion / contraction caused by temperature change. They differ from mechanical traps in that their design requires them to hold back some condensate waiting for it to cool sufficiently to allow the valve to open. In most circumstances this is not desirable as condensate needs to be removed as soon as it is formed. Thermostatic traps and bimetallic traps are examples of temperature operated traps.
3. Thermodynamic (TD) traps. Thermodynamic traps work on the difference in dynamic response to velocity change in flow of compressible and incompressible fluids. As steam enters, static pressure above the disk forces the disk against the valve seat. The static pressure over a large area overcomes the high inlet pressure of the steam. As the steam starts to condense, the pressure against the disk lessens and the trap cycles. This essentially makes a TD trap a "time cycle" device: it will open even if there is only steam present, this can cause premature wear. If non condensable gas is trapped on top of the disc, it can cause the trap to be locked shut.

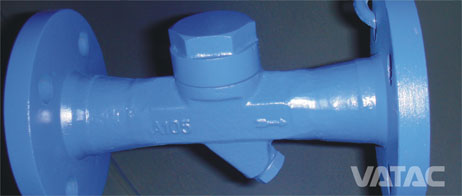

Vatac offers a broad line of Steam Traps covering Free Floating Ball Type Steam Trap, Inverted Bucket Steam Trap,
Thermo-static and Thermo-dynamic Steam Trap etc. Materials Available in Cast Iron, Ductile Iron, Cast Steel, Stainless Steel and Duplex Steel
BROAD MATERIAL AVAILABILITY: Given the various Cast or Forged body materials, the Vatac wide range of Steam Traps often provide the most economical solution for your process and Steaming systems.
THE VATAC STEAM TRAP DESIGNING FEATURES:
▲ Types in Free Floating, Inverted Bucket, or Thermo-static and Thermo-dynamic .
▲ Cast or Forged Body in Cast Iron, Carbon Steel, Stainless Steel, or Duplex
▲ Stainless Steel Gr. 304 Trim as standard
▲ Sizes: DN15 through DN300
▲ Body Styles: Flanged, Welded or Threaded Ends
▲ Pressure Class: ANSI CL150 through CL300, PN10 to PN64
STANDARDS COMPLIANCE:
▲ ASME B16.34, DIN 3202
▲ ASME B16.10, MSS SP-71, BS EN558
▲ ASME B16.5 CL150, EN1092, EN12226
▲ ISO 5208
▲ Sizes: DN15 through DN300
▲ Body Styles: End connections Flanged, Welded or Threaded Ends
▲ Pressure Class: ANSI CL150 through CL300, PN10 to PN64
The Vatac Complete Line of Steam Traps have been solving many fluid control problems in water, Steam and other general industrial applications for over 30 years. Today Vatac Technologies is putting that experience to work for you in more ways than ever before- meeting your changing needs with dependable Vatac Strainers and accessories.
